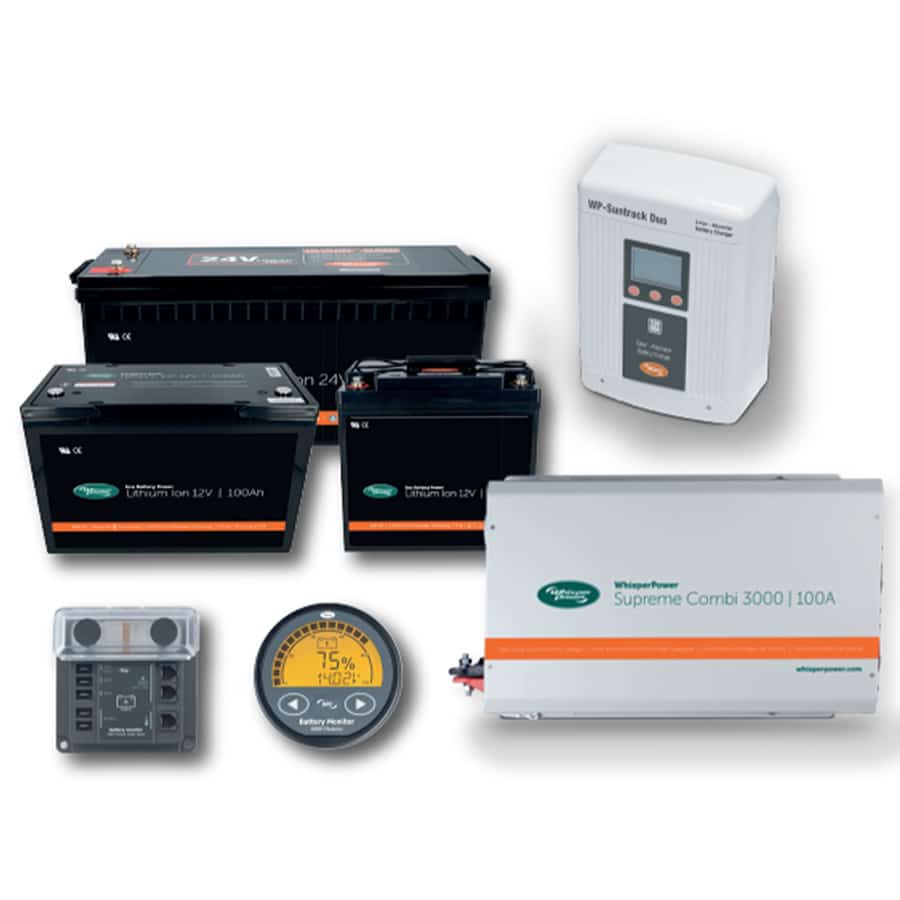

Kraken Charging Hub
-3000W/100A/50A 12V/100Ah
Most fire apparatus are built with low-voltage electrical systems (12V) to power basic equipment (i.e. lights, low power chargers).
As more battery tools are acquired, the apparatus electrical system must be capable of charging tool batteries fast enough to stay fully charged and in service.
Features and Benefits
- Charging hubs provide continuous onboard ac power, instead of trying to charge everything in the short time the apparatus is plugged into shore power.
- Battery tool charging hubs help to spread the load of tool charging over time, starting when the depleted battery is placed on its charger.
- Store energy and take it with you.
- Charge tool batteries continuously, from inverter and lithium battery bank.
Dedicate shore power to recharging truck batteries.
Specifications
|
3 kW CHARGING HUB |
|
|
CH3K10050-100 Kraken Charging Hub 3000W/100A/50A with 12V/100Ah |
|

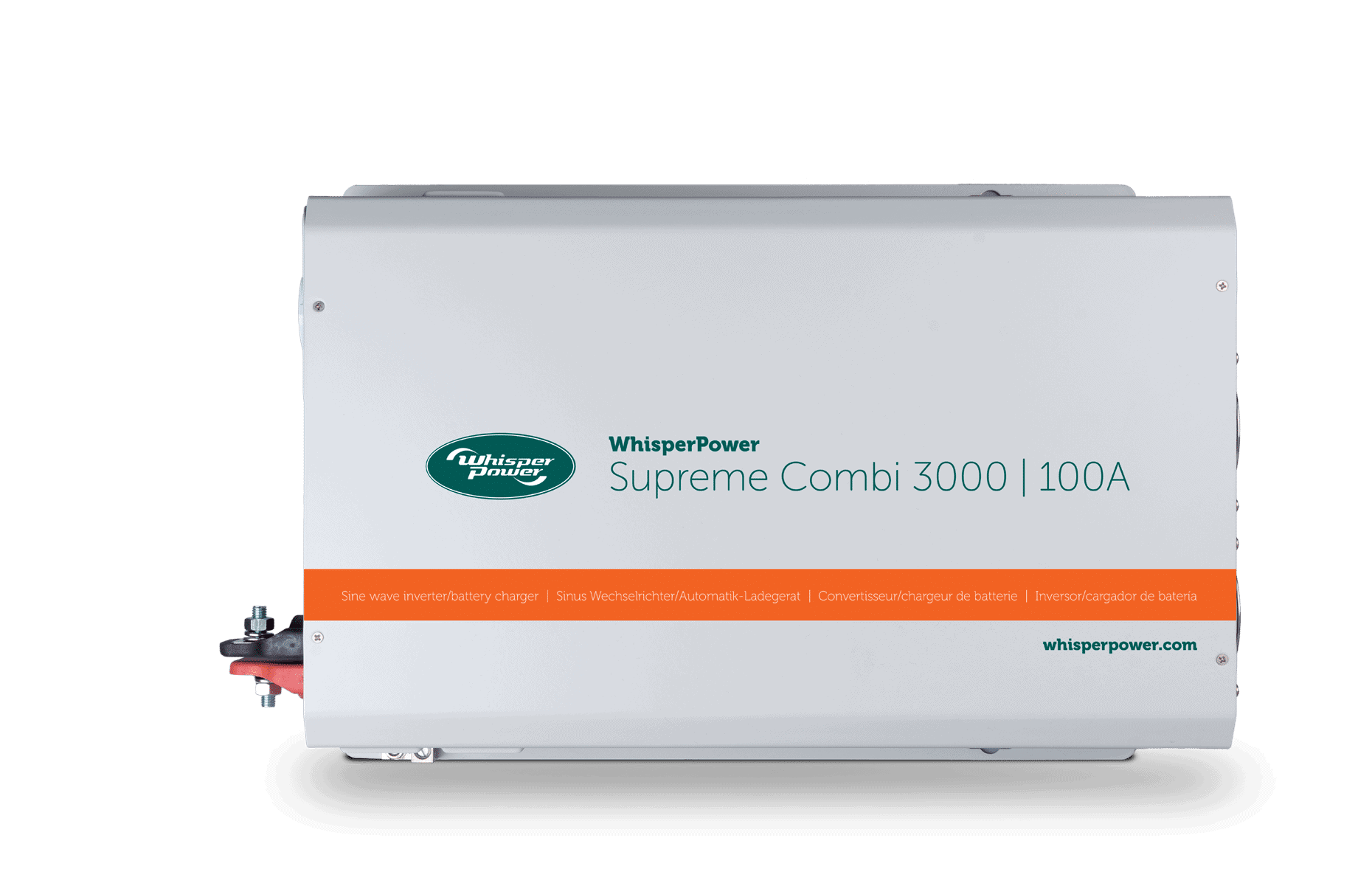

| Sinewave Inverter / Charger |
KP-BIC1230100 |
| Output Power (Continuous) |
3000 W |
| Output Power (Peak) |
6000 W |
| Output (Voltage, Frequency) |
120 VAC – 60 Hz |
| Output Current |
13.0 A |
| Output Waveform |
True Sine Wave (<3% THD) |
| Peak efficiency | 90% |
| Charge Voltage Range |
13.5 – 14.4 VDC |
| Float Voltage Range |
13.4 – 13.8 VDC |
| Charger current (Maximum) |
100 A |
| Charger current setting (Manuals / Auto) |
5, 15, 35, 55, 75, 100 |
| Weight [lbs] | 75 |
| Dimension hxwxd [in] |
19.7 x 11.8 x 9.0 |

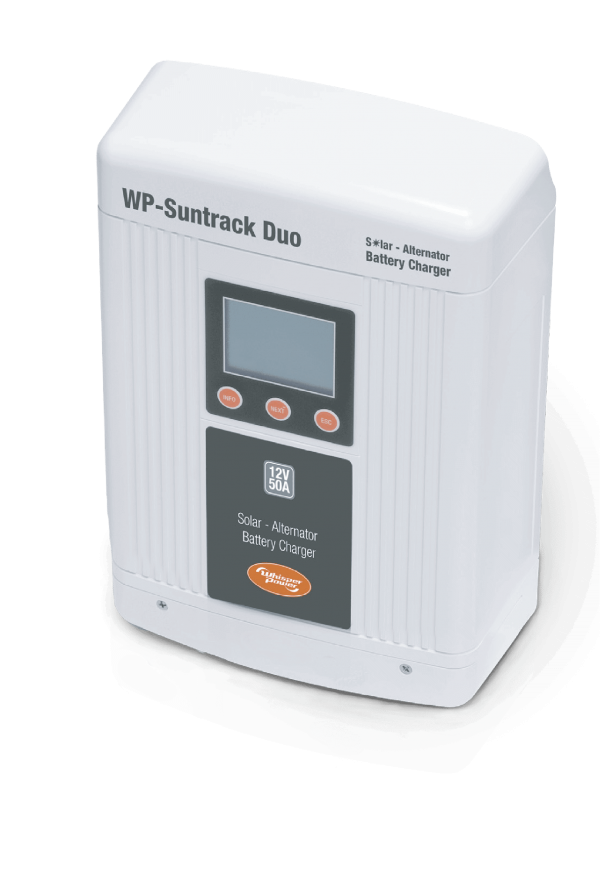

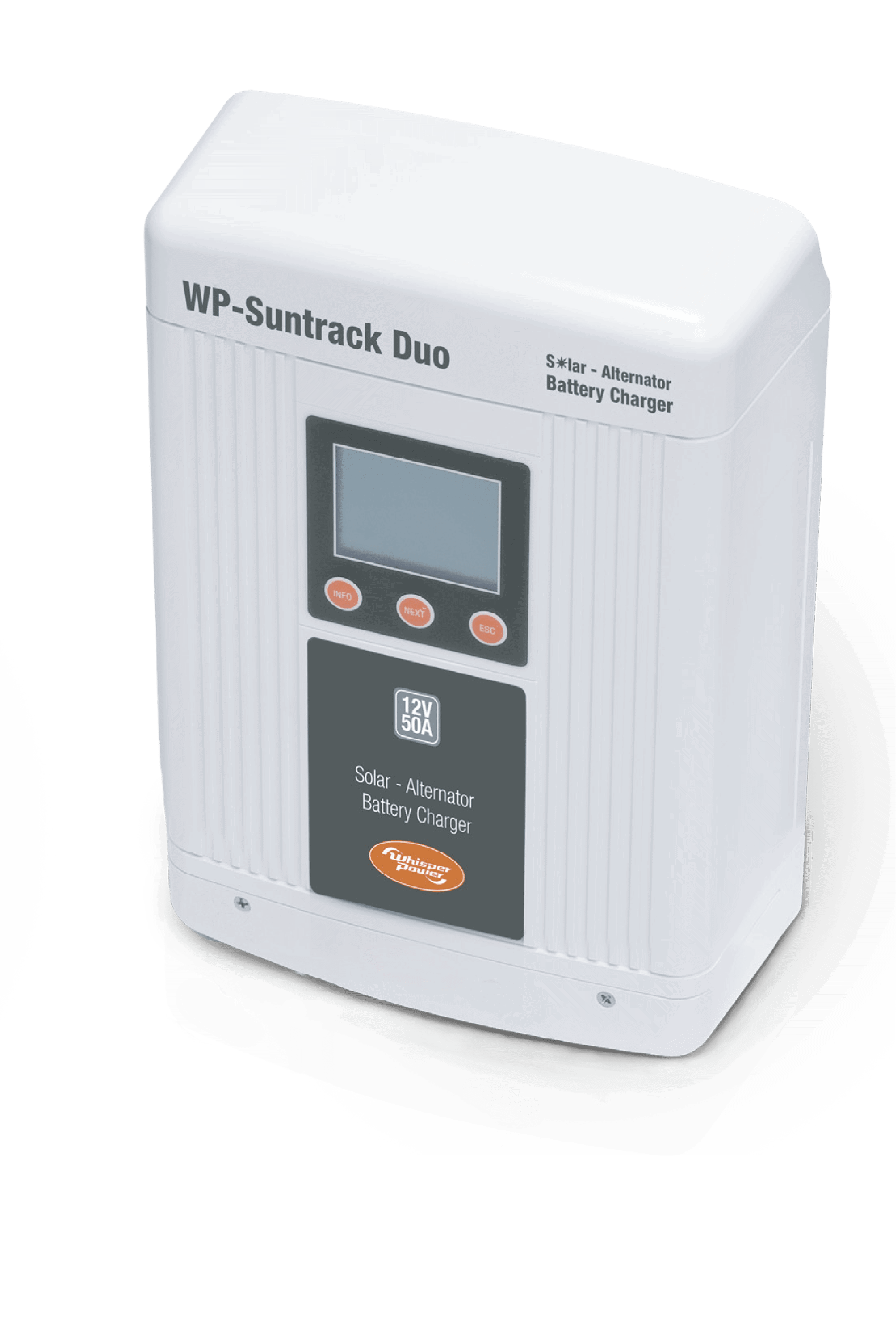

| WP-Suntrack DUO 12V / 50A |
WP-60111430 |
| PV max open circuit voltage (VDC) |
14.5 – 50 Vdc |
| Max PV input power |
500W @12V – 750W @24V |
| Max MPPT current |
30A |
| Dimension hxwxd [in] |
9.52 x 6.77 x 2.91 |

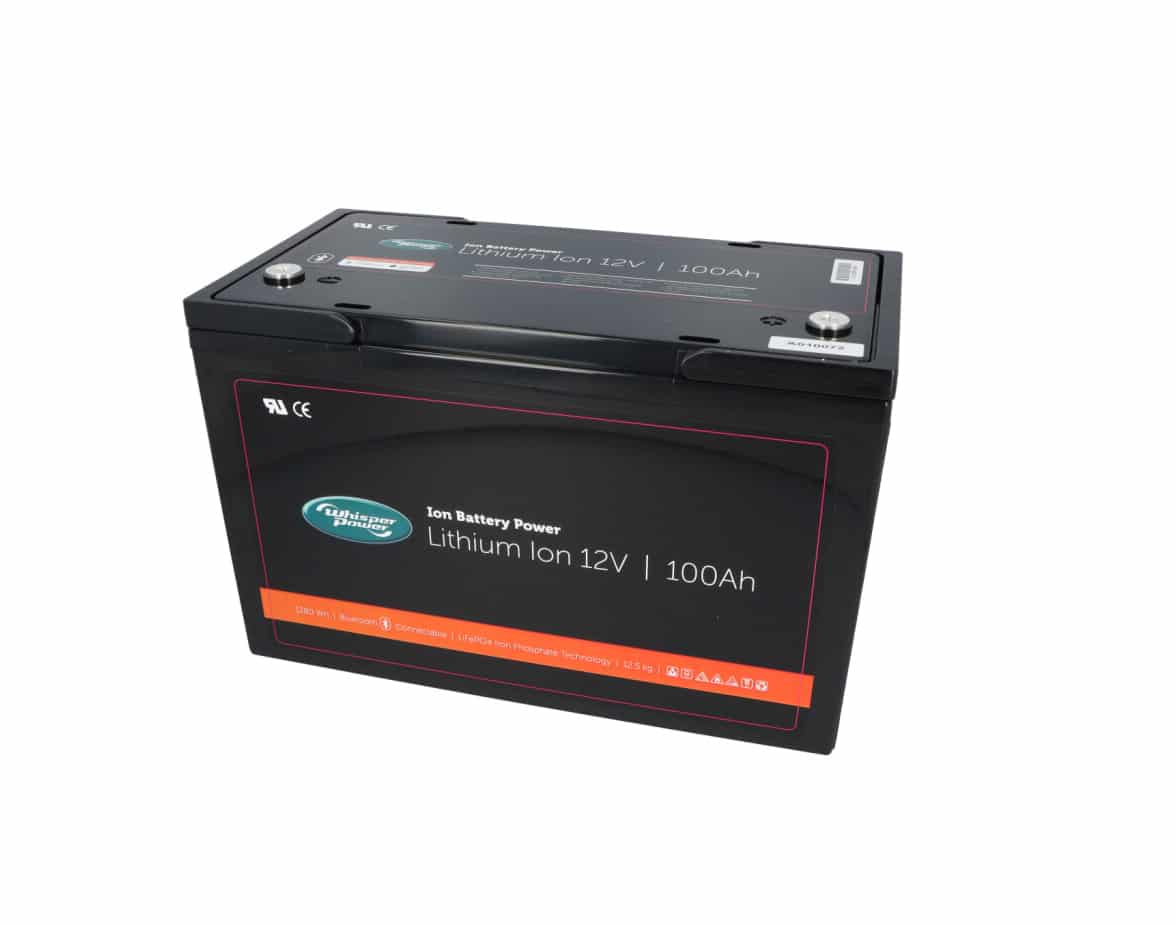

| 100AH LITHIUM BATTERY |
WP-40291202 |
| Nominal voltage (V) |
12,8 V |
| Charge cut off voltage |
15,6 V |
| End charge voltage |
14,6 VDC +- 0,2 V |
| Max charge current 1/c |
100 A |
| Max float charge current |
50A |
| Dimonsions w x d x h (in) |
12 x 6 x 8 |

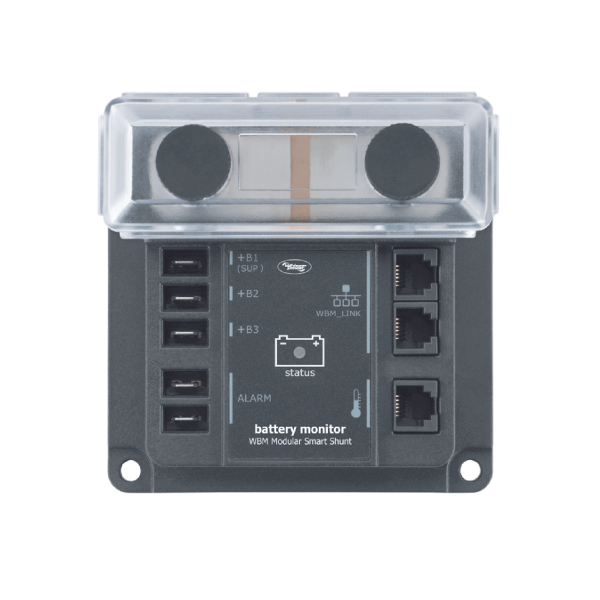

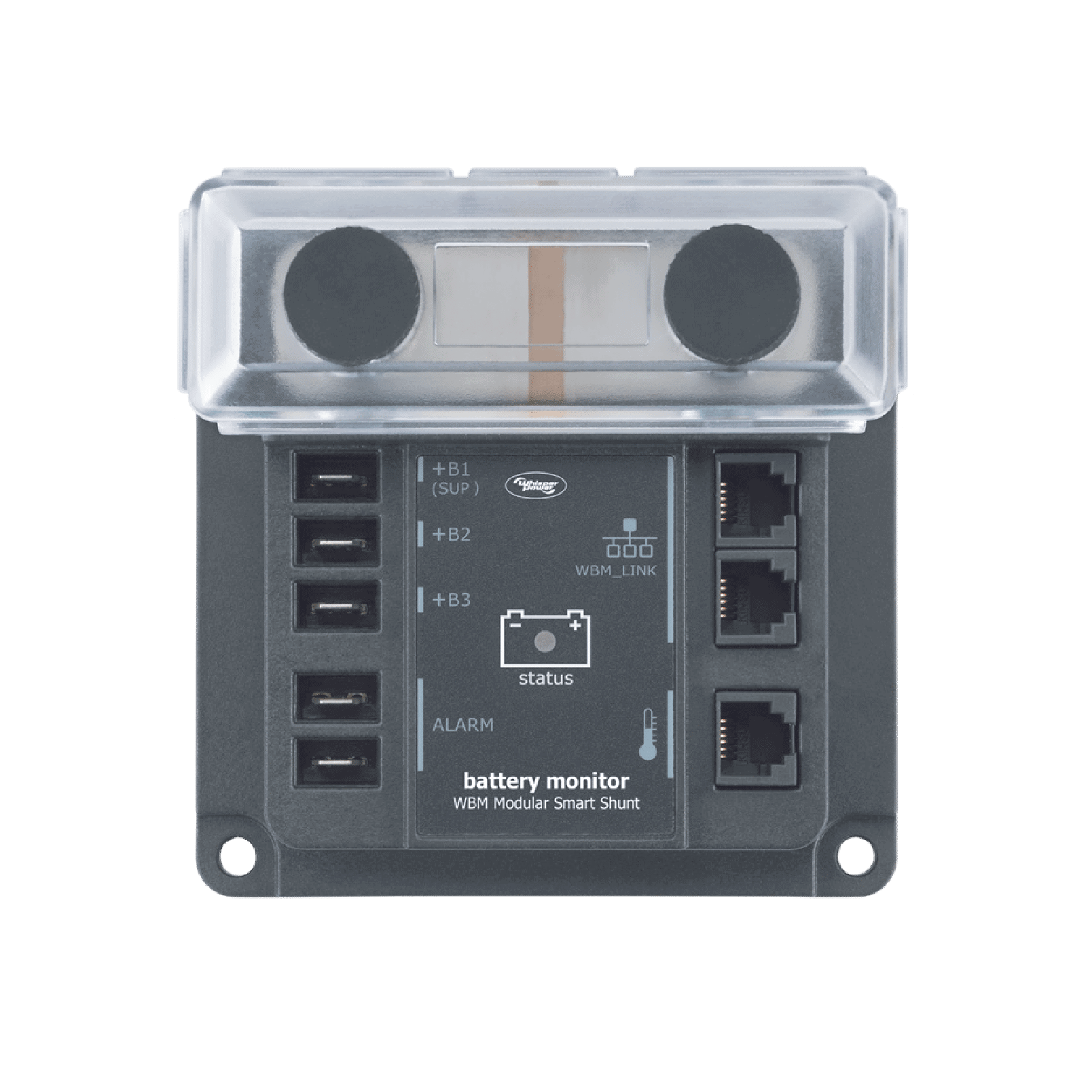

| Smart Shunt |
WP-40290313 |
| Supply voltage range |
7..70V dc |
| Supply current (@ 12V / 24V / 48V ) |
10mA / 6mA / 5mA |
| Input voltage range main battery (+B1) |
7..70V dc1) |
| Input voltage range second and third battery (+B2, +B3) |
1..70V dc |
| Input current range |
-600..+600 A2) |
| Battery capacity range |
10..10000 Ah |
| Shunt dimensions: |
4 x 4 9 in 2.5 in 10.2 oz |

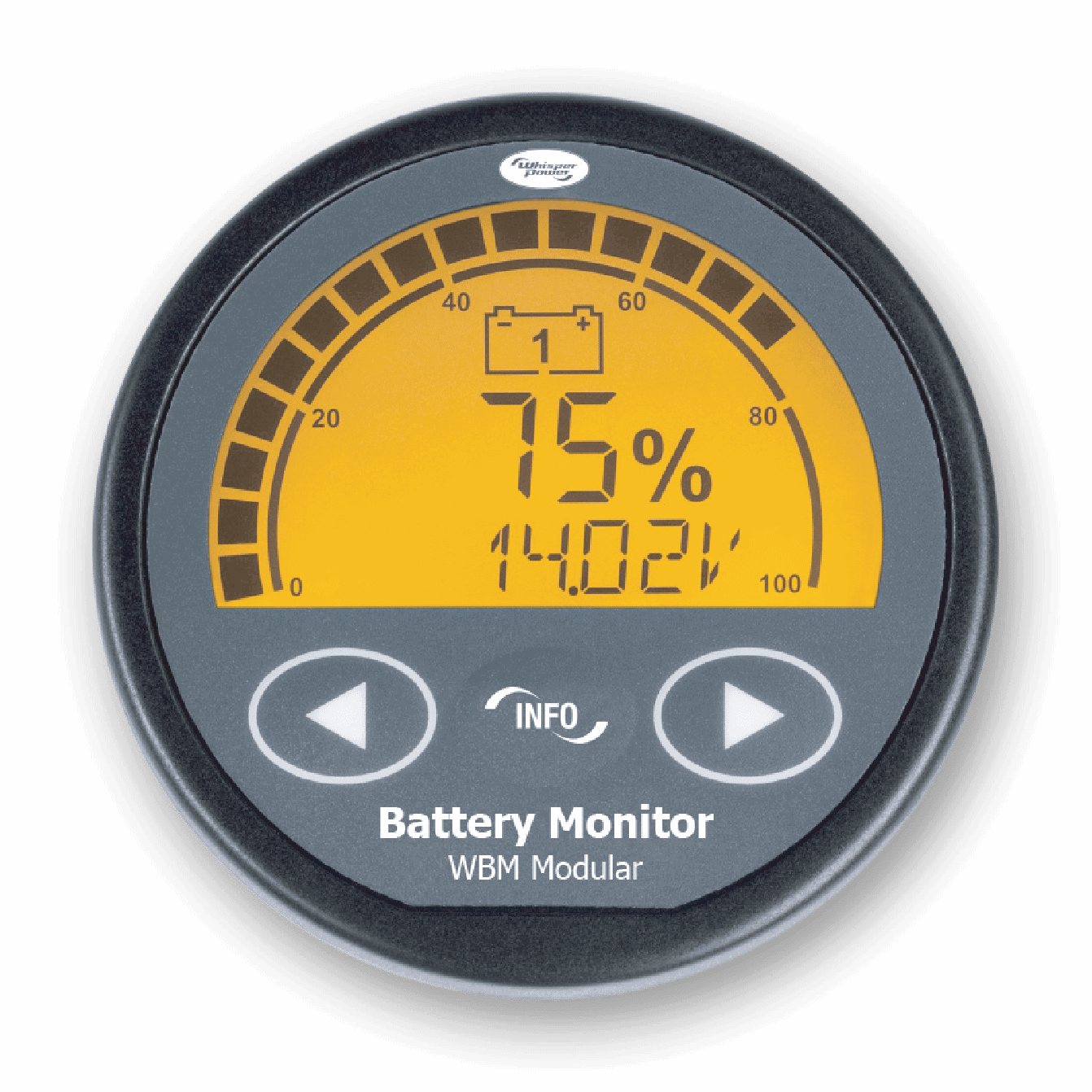

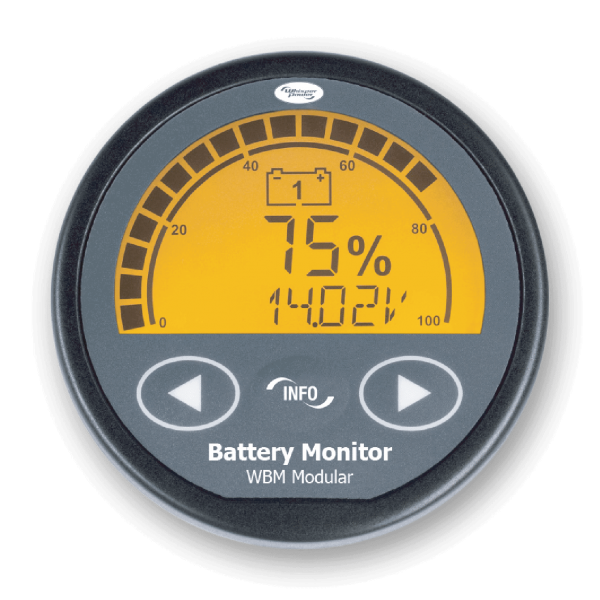

| Display dimensions: |
Ø 2.5 in Ø 2 in 1.4 in 2.4 o |
